Replacement Diaphragm in FKM

Overview

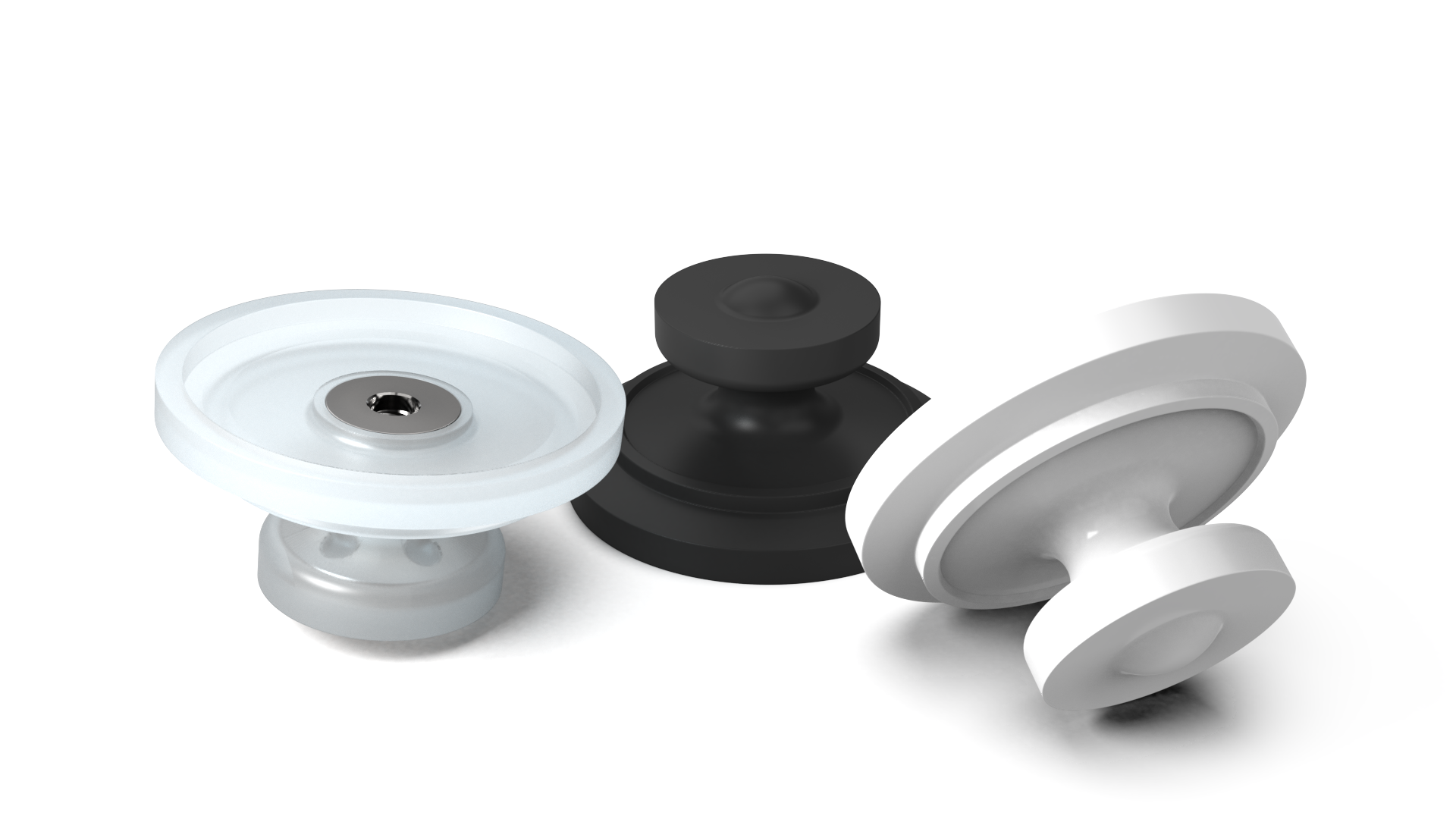

OEM Replacement Radial-style Diaphragms

The radial-style diaphragm in FKM offers an advanced solution for fluid regulation, combining robust performance. Made from high-quality Chemours Viton®, peroxide-cured and fully credentialed. It is ideally suited for applications in sectors where safety, hygiene, chemical exposure and precise process control are crucial.

Applications

The replacement diaphragm in FKM is ideal for:

• Pharmaceutical manufacturing processes – Tank Bottom Outlet Valve, Point of Use valves.
• Biotechnological applications
• Cleaning in Place (CIP) – Harsh cleaning media

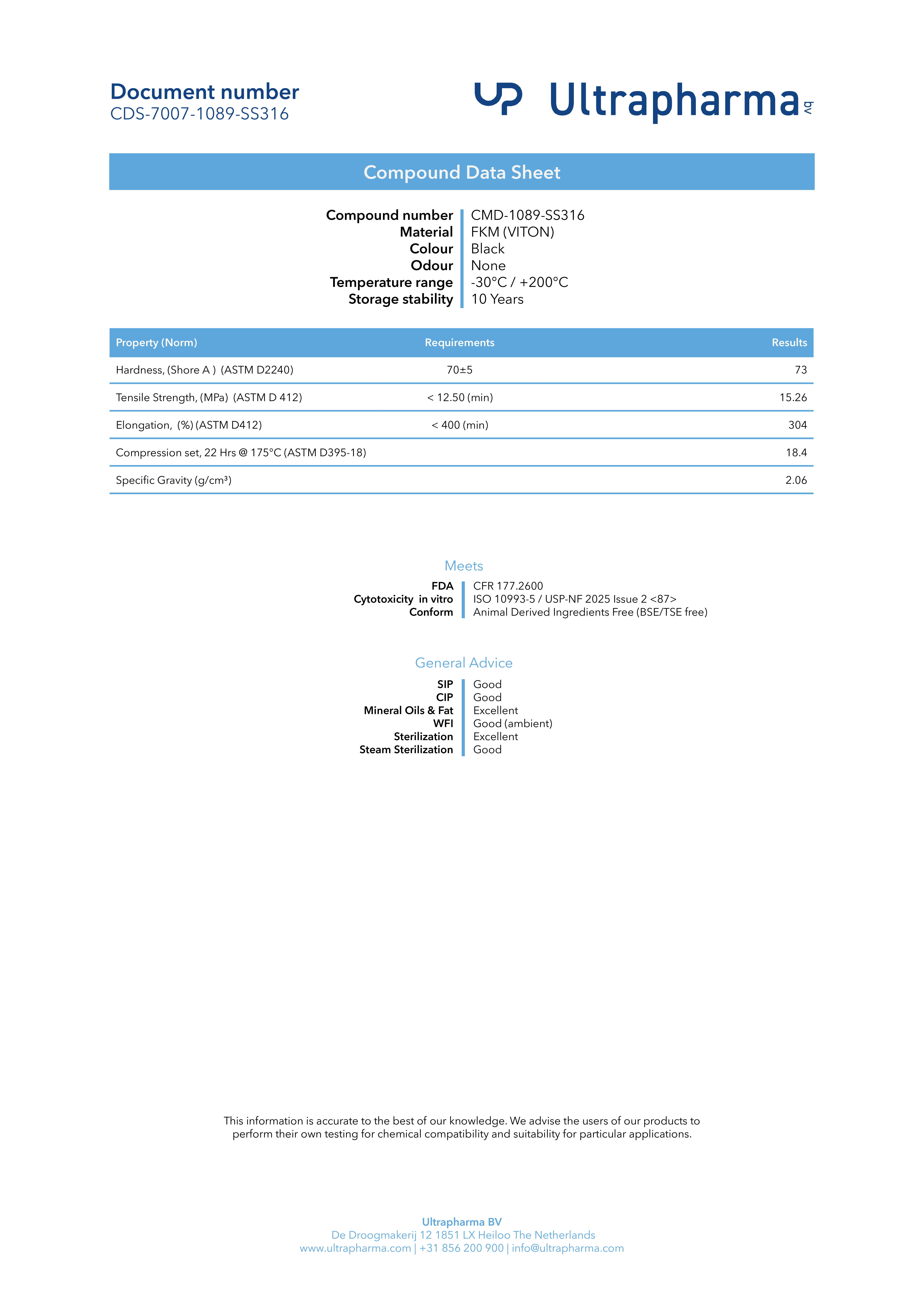

Technical Specifications

• Technical Specifications
• — Pressure Range: Engineered for high-demand environments. Range -1 to 6 bar (-14 to 88 PSI).
• — Temperature Range: Min -30˚C to SIP @ 135˚C
• — Material: CMD-1089-SS316 FKM black, peroxide-cured
• — Laser Engraved: Each diaphragm is laser-engraved with Lot# and D.O.M. and DN# , ensuring full traceability
• — Packaging: Standard: Sealed bag + carton box Optional: Cleanroom ISO7 packaged (non-sterile) double-bag
• — Standard: Sealed bag + carton box
• — Optional: Cleanroom ISO7 packaged (non-sterile) double-bag
• — Quality: At Ultrapharma, we uphold the highest quality standards by carefully controlling raw materials and ensuring full traceability throughout every stage of manufacturing.

Compliance

• USP<87>
• FDA CFR177.2600
• ADIF BSE-TSE free
• 316SS shaft with heat# registration

Testing

Radial-style diaphragms have been tested per ASME BPE Appendix K . Evaluation tests included SIP (Steaming In Place) up to 500 cycles .

Contact us if you have specific question about one of our OEM Radial-style Diaphragms.
