Steridose® PTFE
Ultrapharma · Ref 770569004
The diaphragm in PTFE offers an advanced solution for fluid regulation, combining robust performance in chemical processes. Made from Modified PTFE . It is ideally suited for…
Overview
Steridose® Diaphragm
The diaphragm in PTFE offers an advanced solution for fluid regulation, combining robust performance in chemical processes. Made from Modified PTFE . It is ideally suited for applications in sectors where chemical resistance and precise process control are crucial.
Applications
The PTFE diaphragm is ideal for:
- Pharmaceutical manufacturing processes – Tank Bottom Outlet Valve, Point of Use valves.
- Chemical processing at elevated temperatures .
Technical Specifications
- Pressure Range: Engineered for high-demand environments. Range -1 to 6 bar (-14 to 88 PSI).
- Temperature Range: Min -55˚C to SIP @ 175˚C
- Material: virgin PTFE
- Inscription : Not available on the diaphragm itself
- Packaging:
- — Standard: Sealed bag
Compliance
- USP<88>
- FDA CFR177.1550
- BSE-TSE free
Contact us if you have specific question about one of our OEM Radial-style Diaphragms.
Product number
Unique reference for reordering and traceability.

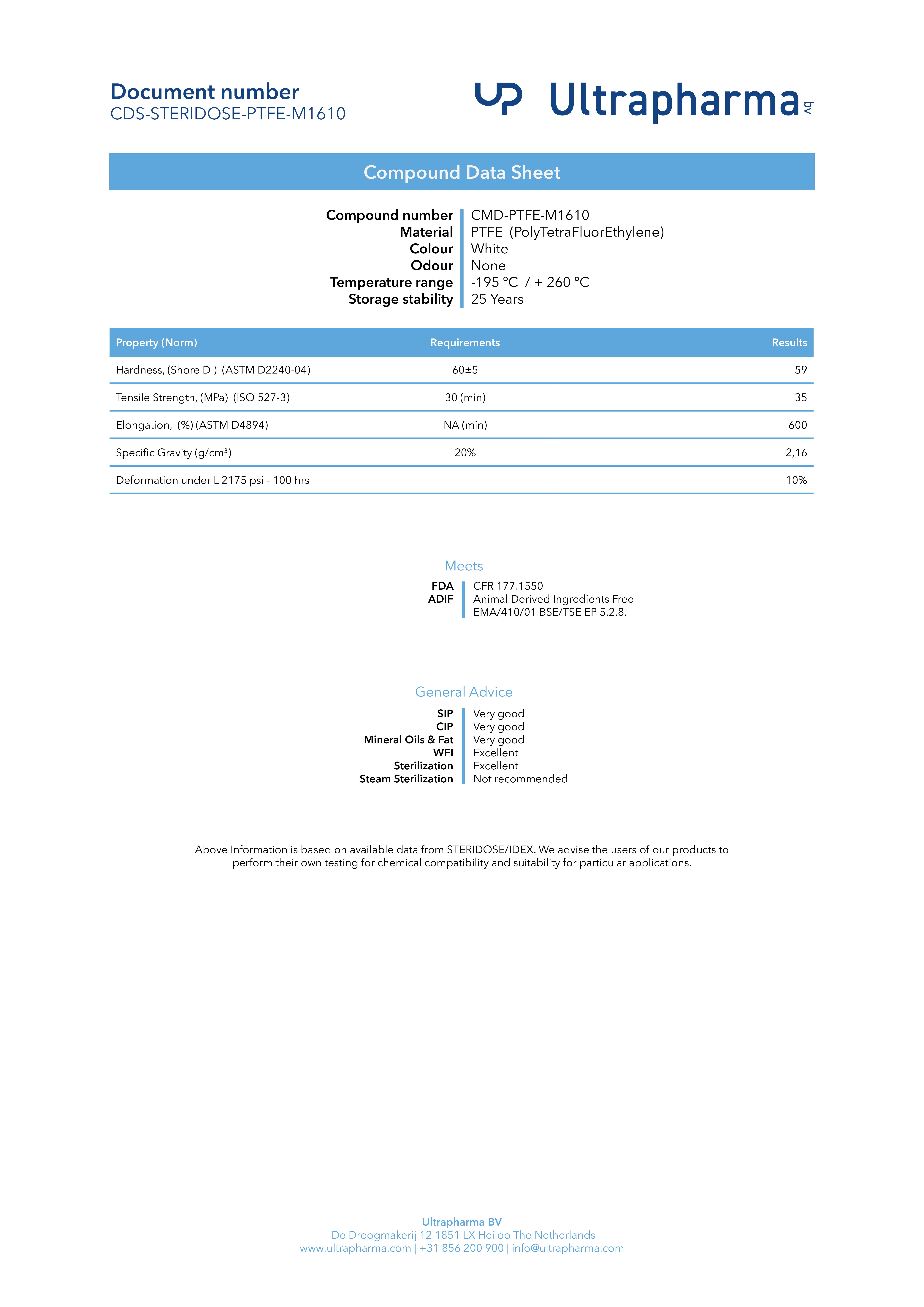

Compound data sheet
Material and compliance data on request.
Brochure
Technical brochure and fitting instructions.
Full technical and quality documentation is supplied with each quotation. Brand names are referenced for identification purposes only.
