Replacement Diaphragm Translucent Silicone
Ultrapharma · Ref 716231640
The radial-style diaphragm in Translucent Silicone offers an advanced solution for fluid regulation, combining robust performance. Made from high-quality, translucent platinum silicone ,…
Overview

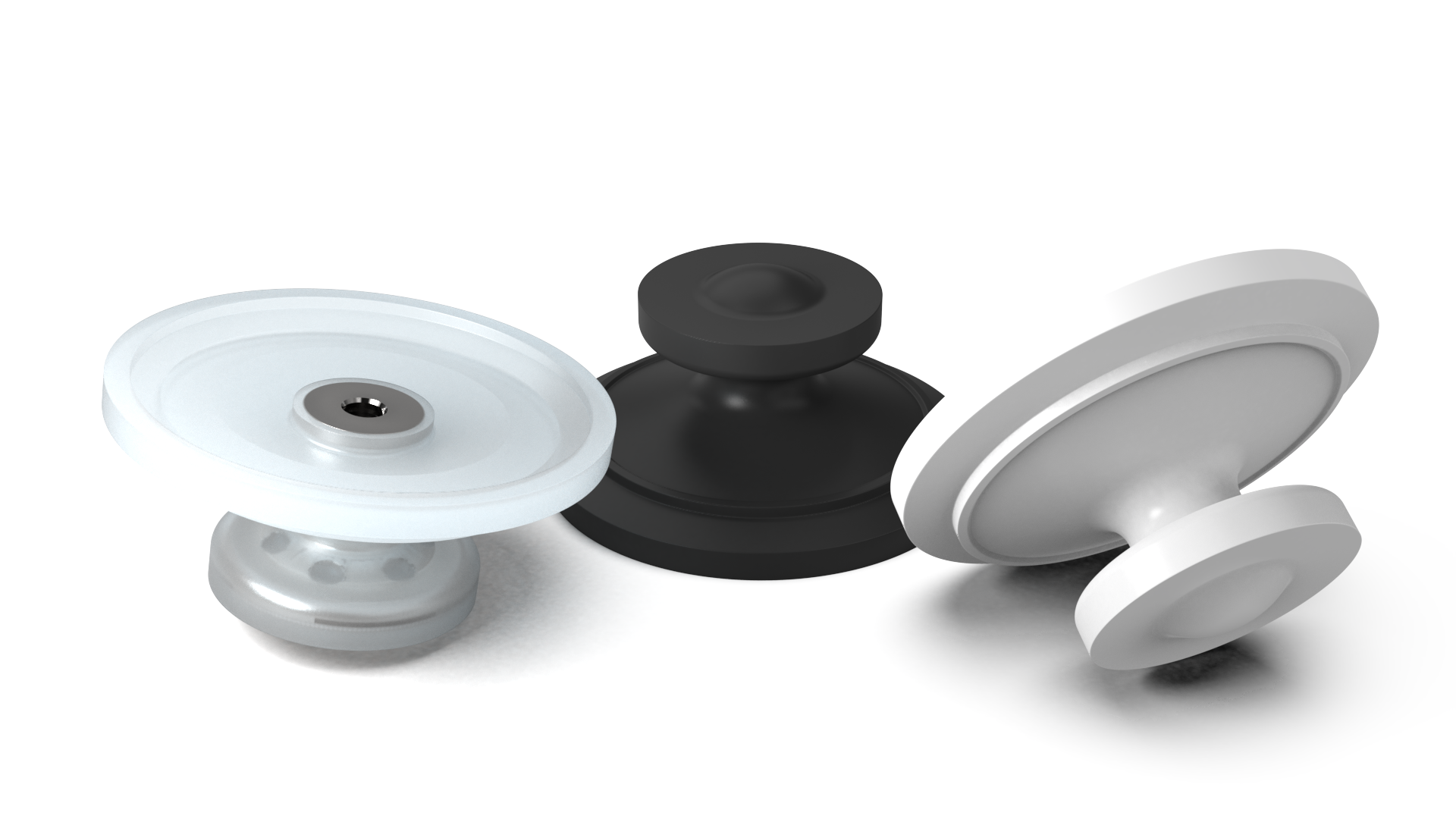

OEM Replacement Radial-style Diaphragms
The radial-style diaphragm in Translucent Silicone offers an advanced solution for fluid regulation, combining robust performance. Made from high-quality, translucent platinum silicone , fully credentialed. It is ideally suited for applications in sectors where safety, hygiene, and precise process control are crucial.
Applications
The replacement diaphragm in translucent Silicone is ideal for:
- Pharmaceutical manufacturing processes – Tank Bottom Outlet Valve, Point of Use valves.
- Biotechnological applications
Technical Specifications
- Pressure Range: Engineered for high-demand environments. Range -1 to 6 bar (-14 to 88 PSI).
- Temperature Range: Min -30˚C to SIP @ 135˚C
- Material: CMD-1012 medical-grade Platinum Silicone with proven durability
- Laser Engraved: Each diaphragm is laser-engraved with Lot# and D.O.M. and DN# , ensuring full traceability
- Packaging:
- — Standard: Sealed bag + carton box
- — Optional: Cleanroom ISO7 packaged (non-sterile)
- Quality: At Ultrapharma, we uphold the highest quality standards by carefully controlling raw materials and ensuring full traceability throughout every stage of manufacturing.
Compliance
- USP<87> and USP<88>
- FDA CFR177.2600
- European Pharmacopoeia 3.1.9
- ADIF BSE-TSE free
- 316SS shaft with heat# registration
Testing
Radial-style diaphragms have been tested per ASME BPE Appendix K . Evaluation tests included SIP (Steaming In Place) up to 500 cycles .
Contact us if you have specific question about one of our OEM Radial-style Diaphragms.
Product number
Unique reference for reordering and traceability.

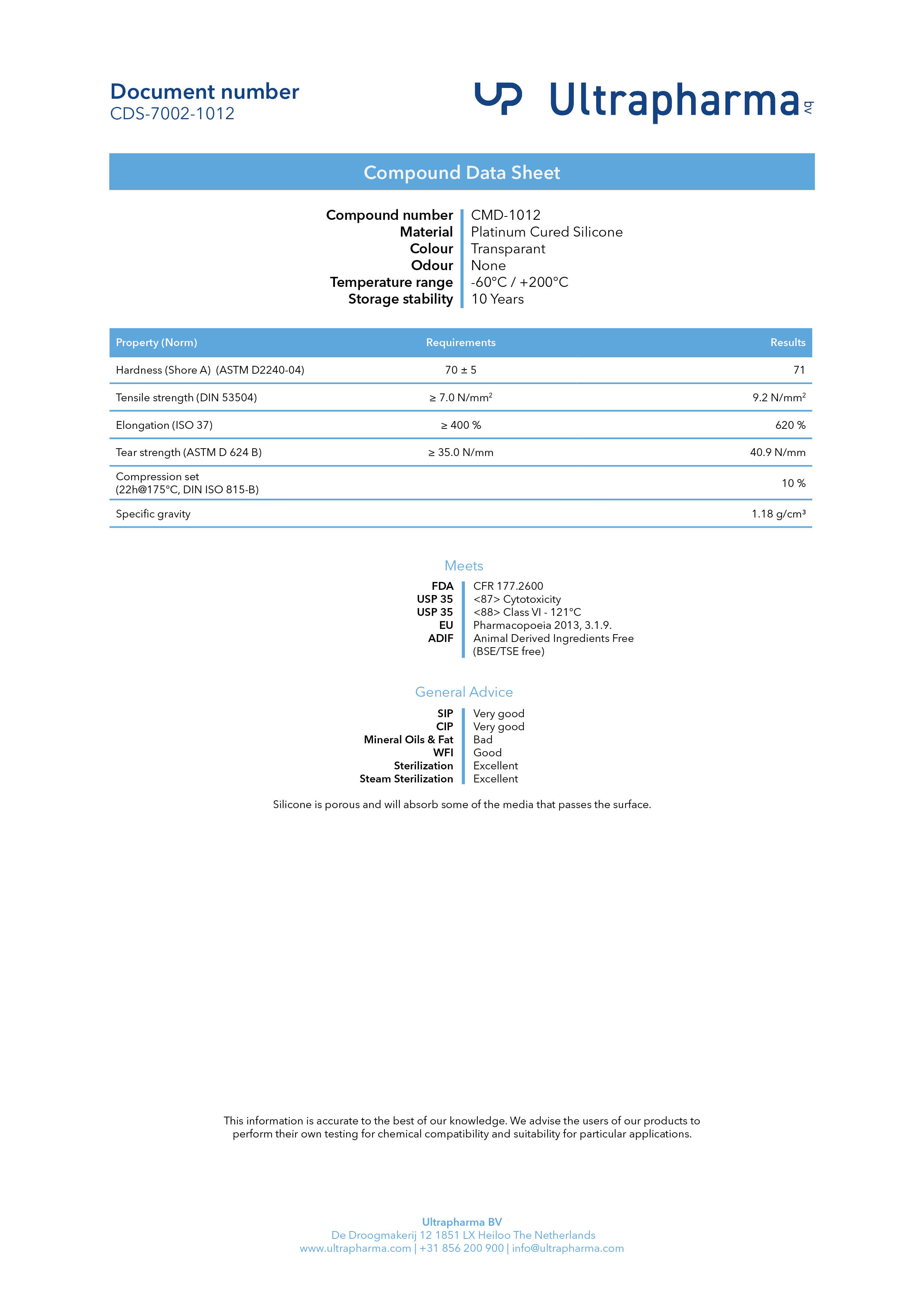

Compound data sheet
Material and compliance data on request.
Brochure
Technical brochure and fitting instructions.
Full technical and quality documentation is supplied with each quotation. Brand names are referenced for identification purposes only.
